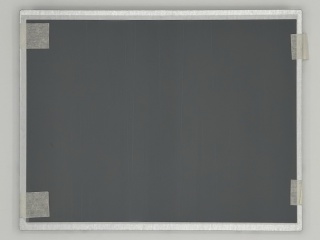

A104SN03 V1 AUO 10.4" TN LCD Panel 800×600 350nits WLED TTL 60pins Screen

A104SN03 V1 AUO 10.4" TN LCD Panel 800600 350nits WLED TTL 60pins Screen

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	AUO
Series :	A104SN03
Model :	A104SN03 V1
Keywords Desc. :	AUO 10.4" TN LCM 800×600 350nits WLED TTL 60pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD
Application :	Digital Photo Frame, Industrial, Portable DVD Player
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	10.4"
Resolution :	800×600
Aspect Ratio :	4:3 (W:H)
Form Factor :	Flat Rectangle
Active Area :	211.2 (W) × 158.4 (H) mm (A.A)
Outline Dimension :	228.4 (W) × 175.4 (H) mm
Max. Depth :	6.5 mm
LC Family :	TN
Polarizer :	Transmissive
Brightness :	350 (Typ.)
Contrast Ratio :	500:1 (Typ.)
Viewing Angle :	75/75/50/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	6 o'clock
Display Colors :	262K/16.7M
Backlight Type :	WLED
Interface Type :	TTL
Interface Pins :	60 Pins
Touch Panel :	Without
Operating Temp. :	-10 ~ 60 °C
Storage Temp. :	-20 ~ 70 °C
