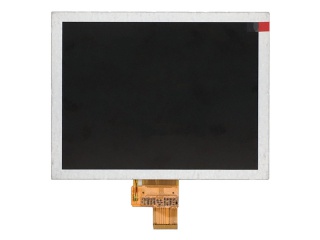

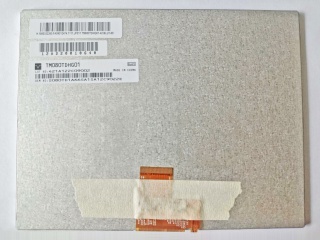

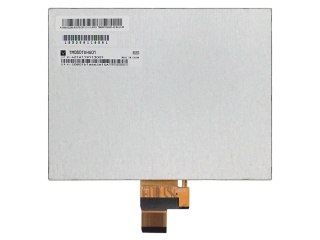

TM080TDHG01-42 Tianma 8" TN LCD PANEL 1024×768 400nits WLED LVDS 40pins

$0

TM080TDHG01-42 Tianma 8" TN LCD PANEL 1024768 400nits WLED LVDS 40pins

Product Description

TM080TDHG01-42 Tianma 8" TN LCD PANEL 1024×768 400nits WLED LVDS 40pins

System Category :LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :Tianma
Series :TM080TDHG
Model :TM080TDHG01-42
Keywords Desc. :Tianma 8" TN LCM 1024×768 400nits WLED LVDS 40pins
Product Class :Graphic Display
Product Tags :Color TFT-LCD
Application :Industrial
Panel Type :a-Si TFT-LCD
Panel Composition :LCM
Panel Size :8"
Resolution :1024×768
Aspect Ratio :4:3 (W:H)
Form Factor :Flat Rectangle
Active Area :162.048 (W) × 121.536 (H) mm (A.A)
Outline Dimension :183 (W) × 141 (H) mm
Max. Depth :3.7 mm
LC Family :TN
Polarizer :Transmissive
Brightness :400 (Typ.)
Contrast Ratio :1000:1 (Typ.)
Viewing Angle :80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :6 o'clock
Display Colors :262K/16.7M
Backlight Type :WLED
Interface Type :LVDS
Interface Pins :40 Pins
Touch Panel :Without
Operating Temp. :-20 ~ 70 °C
Storage Temp. :-30 ~ 80 °C
