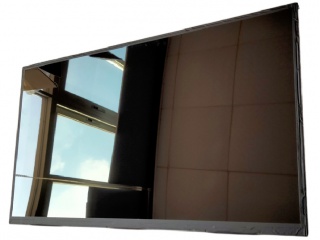

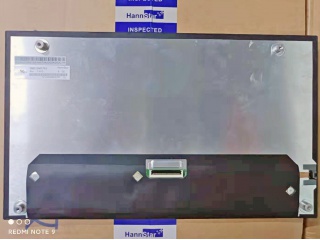

HSD128JUW1-A10 HannStar 12.8" IPS LCD PANEL 1920×1080 700nits WLED LVDS 50pins 2.9G Vibration

HSD128JUW1-A10 HannStar 12.8" IPS LCD PANEL 19201080 700nits WLED LVDS 50pi

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	HannStar
Series :	HSD128JUW1
Model :	HSD128JUW1-A10
Keywords Desc. :	HannStar 12.8" IPS LCM 1920×1080 700nits WLED LVDS 50pins 2.9G Vibration
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, Wide Temperature LCD, High Brightness LCD, Sunlight Readable LCD, IPS LCD
Application :	Automotive Display, Industrial, Outdoor High Brightness
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	12.8"
Resolution :	1920×1080
Aspect Ratio :	16:9 (W:H)
Form Factor :	Flat Rectangle
Active Area :	283.392 (W) × 159.408 (H) mm (A.A)
Outline Dimension :	294.4 (W) × 175 (H) mm
Max. Depth :	12 mm
LC Family :	IPS
Polarizer :	Transmissive
Brightness :	700 (Typ.)
Contrast Ratio :	1500:1 (Typ.)
Viewing Angle :	85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
Display Colors :	16.7M
Backlight Type :	WLED
Interface Type :	LVDS
Interface Pins :	50 Pins
Touch Panel :	Without
Operating Temp. :	-30 ~ 85 °C
Storage Temp. :	-40 ~ 90 °C
