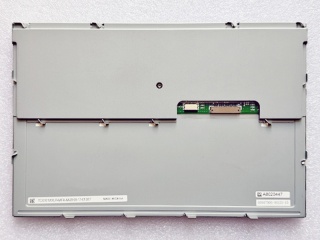

TCG101WXLPAAFA-AA20 Kyocera 10.1" TN LCD PANEL 1280×800 400nits WLED LVDS 20pins

TCG101WXLPAAFA-AA20 Kyocera 10.1" TN LCD PANEL 1280800 400nits WLED LVDS 20

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Kyocera
Series :	TCG101WXLPAAFA
Model :	TCG101WXLPAAFA-AA20
Keywords Desc. :	Kyocera 10.1" TN LCM 1280×800 400nits WLED LVDS 20pins RTP
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, Resistive Touch LCD
Application :	Industrial
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	10.1"
Resolution :	1280×800
Aspect Ratio :	16:10 (W:H)
Form Factor :	Flat Rectangle
Active Area :	216.96 (W) × 135.6 (H) mm (A.A)
Outline Dimension :	236 (W) × 156.8 (H) mm
Max. Depth :	12 mm
LC Family :	TN
Polarizer :	Transmissive
Brightness :	400 (Typ.)
Contrast Ratio :	800:1 (Typ.)
Viewing Angle :	80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Display Colors :	16.7M
Backlight Type :	WLED
Interface Type :	LVDS
Interface Pins :	20 Pins
Touch Panel :	4-wire Resistive Touch
Operating Temp. :	-20 ~ 70 °C
Storage Temp. :	-30 ~ 80 °C
