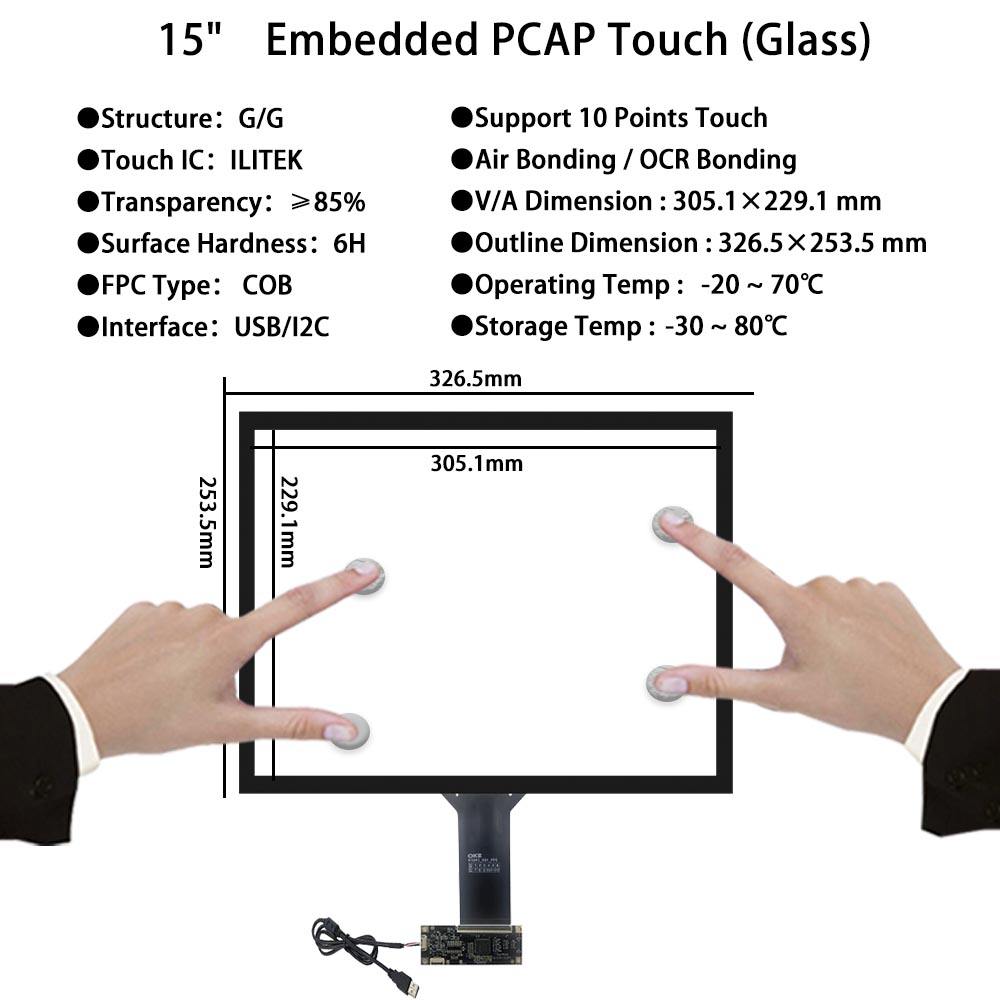

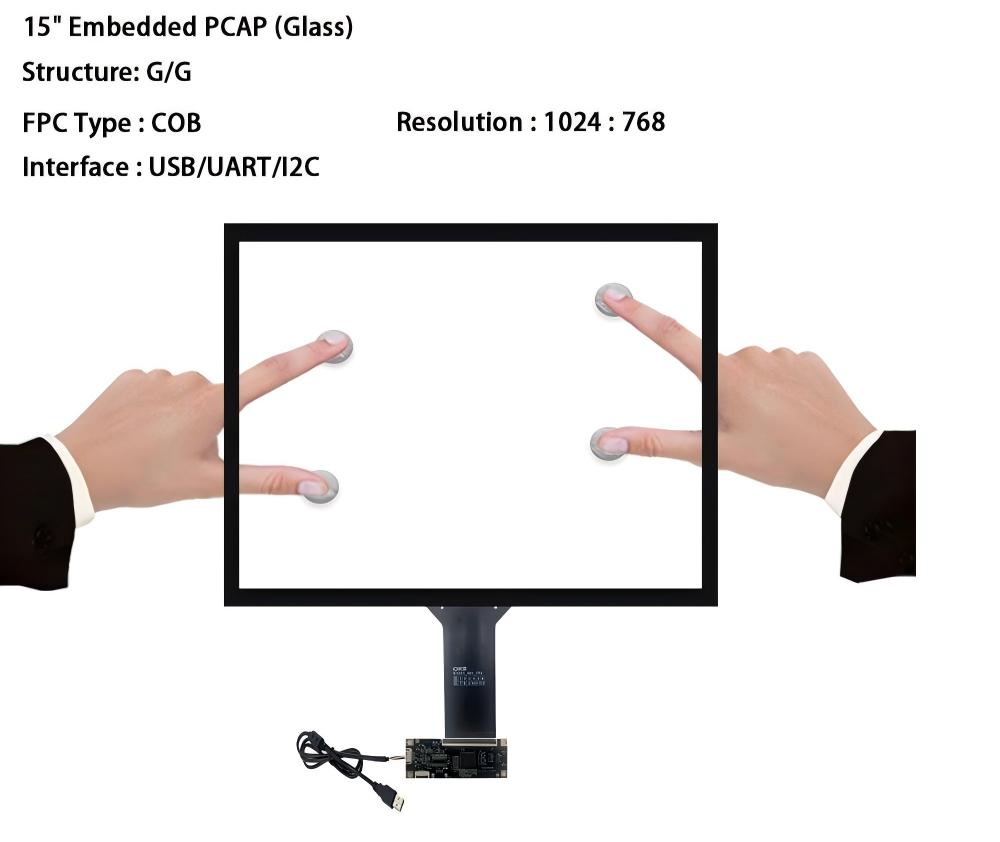

15 Inch Touch Screen Without Touch Control Board 1024*768 LCD USB / I2C Interface PCAP

$0

Key attributesModel NumberK097150ApplicationIndustry LCDInterfaceUSB, I2CTypeCap

Product Description

Key attributes





Model Number
K097150
Application
Industry LCD
Interface
USB, I2C
Type
Capacitive
Length
326.5mm
Diagonal Screen Size
15 inch
Width
253.5mm
Drive IC
ILITEK
Mounting Type
Panel Mounting
Screen Size
15 Inch
Communication Interface
I2C/USB
Touch Points
Support 10 Points Touch

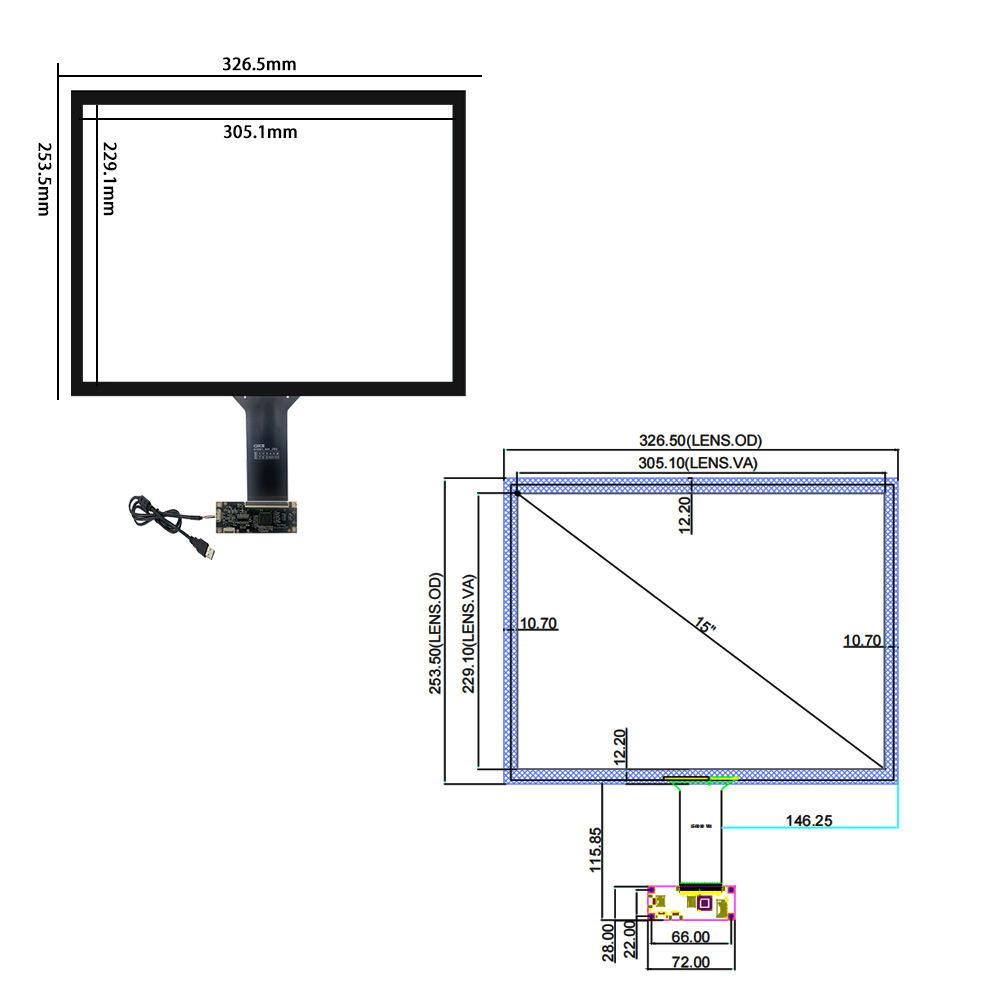

V/A Dimension (H*V)
305.1 * 229.1mm
Outline Dimension
326.5 * 253.5 * 2 mm
Structure
G/G
Surface Hardness
>=6H
Transparency
>=85%
FPC Type
COB
Operating Temp
-20 ~ 70℃
Touch Points
10 Points
Optional Bonding Service
Air Bonding / OCR Bonding

Packaging and delivery

Selling Units
Single item
Single package size
50X35X10 cm
Single gross weight
1.100 kg
