LG Display 15.6"LB156WF1-SPA1 IPS LCD Panel 1920×1080 400nits WLED eDP 30pins Display Screen LB156WF1

LG Display 15.6"LB156WF1-SPA1 IPS LCD Panel 19201080 400nits WLED eDP 30pin

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	LG Display
Series :	LB156WF1
Model :	LB156WF1-SPA1
Keywords Desc. :	LG Display 15.6" IPS LCM 1920×1080 400nits WLED eDP 30pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, IPS LCD
Application :	Healthcare, Industrial
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	15.6"
Resolution :	1920×1080
Aspect Ratio :	16:9 (W:H)
Form Factor :	Flat Rectangle
Active Area :	344.16 (W) × 193.59 (H) mm (A.A)
Outline Dimension :	363.8 (W) × 215.9 (H) mm
Max. Depth :	13.35 mm
LC Family :	IPS
Polarizer :	Transmissive

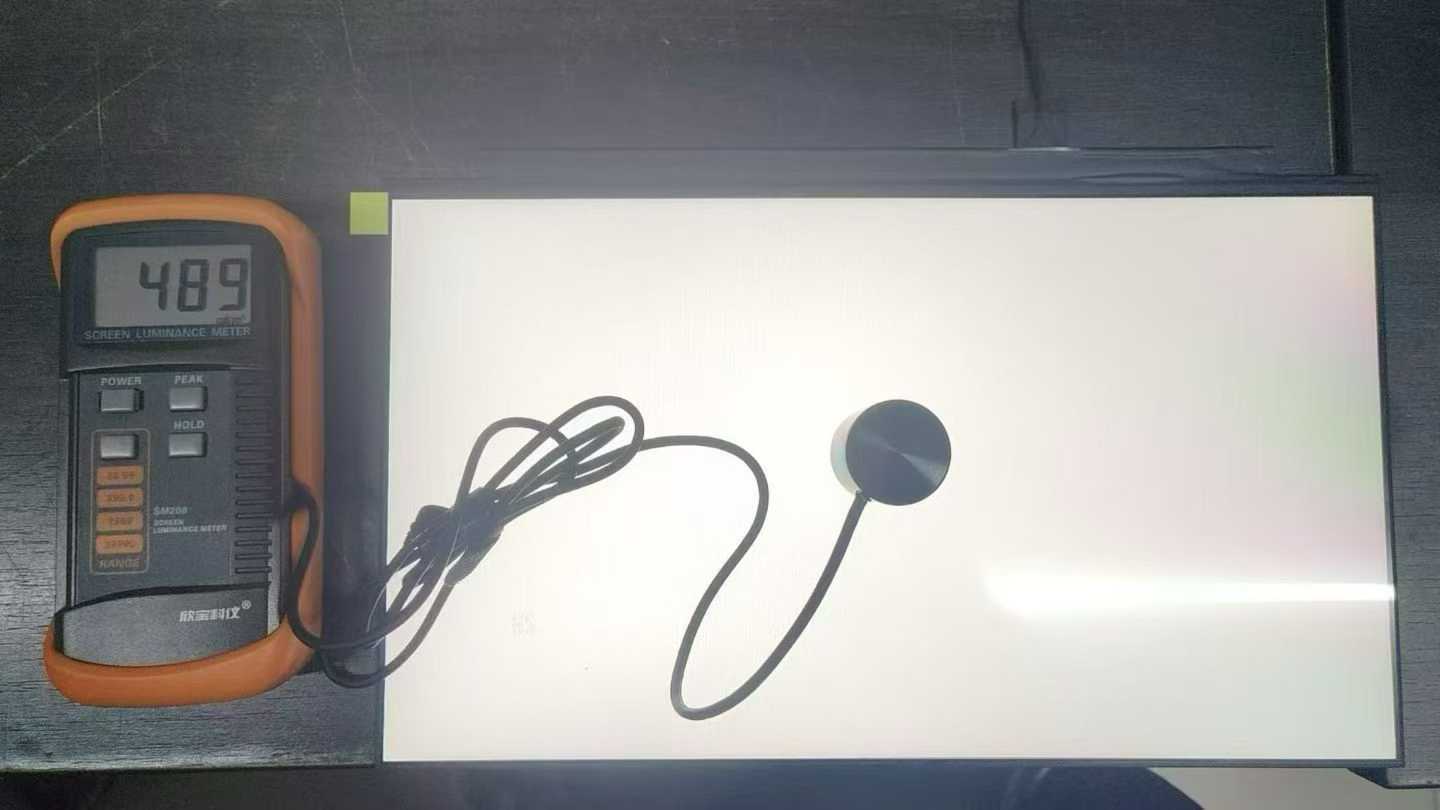

Brightness :	400 (Typ.)
Contrast Ratio :	700:1 (Typ.)
Viewing Angle :	80/80/80/80 (Min.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
Display Colors :	262K
Backlight Type :	WLED
Interface Type :	eDP
Interface Pins :	30 Pins
Touch Panel :	Without
Operating Temp. :	0 ~ 50 °C
Storage Temp. :	-20 ~ 60 °C
